Pamira Rohloff with Gates Belt

Inspired by the Pamir Highway traversing the Pamir mountains, the Pamira Rohloff is designed for loaded touring on rough roads.

The frame has routing for both Rohloff and derailleur gearing with dropout inserts easily switchable between the two. The clearance for 27.5” x 2.3.5” tyres (or 700c x 2.1”) provide comfort and grip off the beaten path.



The frame is constructed in the UK using a combination of heat treated Reynolds 853 steel in the main triangle and air hardened 725 seatstays and 631 for the chainstays, and 853 for the fork. It has bosses for front and rear racks as well as the 3 mount system on the forks for carry-anything cages. It also has bosses for 3 bottle cages and mounts for mudguards.



The price includes custom sizing of your frame to best fit you. You can either visit our showroom for a fitting (no extra cost) or send us your measurements. Click here to arrange a fitting or for info on how to take the measurements.



The favourite amongst many expeditionists is the Rohloff speedhub 500/14. It's chosen because of its ultimate reliability particularly in extreme environments where its protection of the gearing mechanism from sand, mud, salt and dirt is of real benefit.



We use the Rohloff Speedhub with an external gear mech. With the external gear mech the shifter cables run directly from the twist shifter to the cable box so a separate cable stop isn't necessary. For quick and easy removal of the rear wheel, the cable box can be removed from the external transfer box. The sealed gearbox ensures reliability and durability even under the toughest conditions.



The Rohloff hub is paired with the Gates CDX belt  and Gates CDX sprockets, the more premium and durable version for touring.

As for bars there's a choice of the Geoff Loop bar or a black riser (30mm rise) along with a choice of Ergon or ESI chunky grips. Other bars are also available.



The brakes are the easy to maintain and great stopping power mechanical TRP Spyke disc brakes. Hydraulic disc brakes are also an option.



The wheels are handbuilt with XT hubs and a choice of rims - DT Swiss E512 rims, or​ Andra 40's for the ultimate toughness - all in a choice of 27.5" or 29".



Please note we can customise the spec e.g. dynamo hubs, different bars etc.



For some of the component upgrades and accessories click here

Changing your order

As long as construction of the frame hasn’t begun, or bespoke components or frame parts haven’t been ordered we will do what we can to accommodate the changes as we want you to have the ideal bike for you. If it’s too late to make the changes the reasonable additional charges will apply to make the changes, either for labour, frame parts or bike components.



Cancelling your order

Once you have placed an order you have made a commitment to purchase the bike. We then order the bike components (e.g. frame tubes, lugs, brakes etc) on your behalf to build the bike to your requirements. If a customer cancels the purchase once the order has been paid for we will keep the monies to cover the costs incurred. No frame or parts will be supplied to the customer in the event of cancellation, we only provide complete bikes to customers.



Returns Policy

Due to the fact that 1) there is no standard Stanforth bike as every bike is likely to be different with so many options, and 2) because all of our frames are made to order, we do not offer refunds for unwanted bikes or frames.

All of our bikes are made to order to your specific requirements so unfortunately they are non – refundable.



Faulty/damaged bikes

If your bike is faulty/damaged please email simon@stanforthbikes.co.uk with the following information:

• Your full name, date of purchase and the address the bike was delivered to
• The frame number (as written on the warranty) and confirmation of which bike/frame is coming back to us

We will then discuss with you the best way of fixing the problem, ideally through replacement parts being fitted by a bike technician local to you. Please do not send back to us without discussing it with us first.

We are unable to give a refund in these circumstances but we will make sure the problem is fixed.

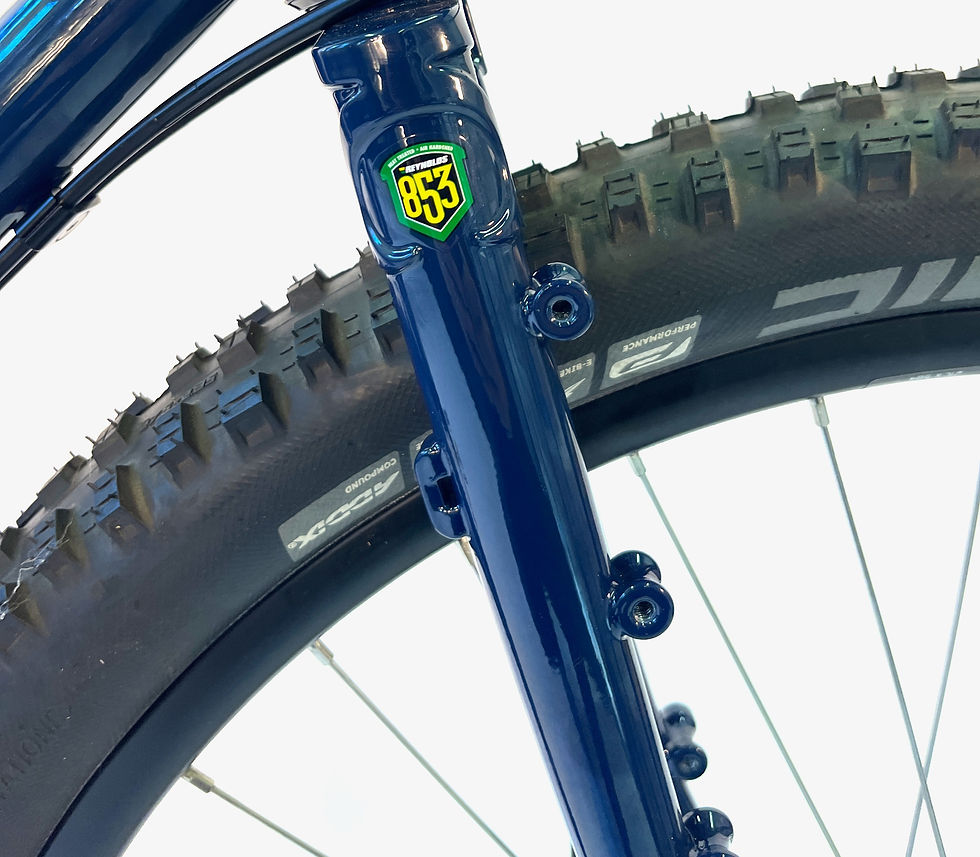

Frame & Forks: Fillet brazed frame hand built in England. Reynolds 853 main frame, Reynolds 631 chainstays and 725 seatstays. Paragon rear dropouts and inserts. Split for Gates belt. Reynolds 853 disc specific fork blades. Pacenti MTB fork crown.

Headset: Cane Creek 40

Shifters: Rohloff twist shifter

Transmission: Rohloff Speedhub

Chainset: Thorn Rohloff cranks with Gates CDX sprocket

Bottom Bracket: Tange Seiki internal square taper

Brakes: TRP Spyke MTB mechanical disc brakes / Shimano 180mm front & 160mm rear Rohloff disc rotors

Brake levers: Shimano Deore T610

Rims: DT Swiss E512 disc 27.5" or Andra 40

Front Hub: Shimano Deore XT M756 36h six bolt or XT M8000 32 hole centre-lock disc hub

Tyres: Marathon Plus MTB 27.5 x 2.35", Marathon Plus Tour 28 x 2.00, Marathon Almotion rigid 27.5" x 2.15", or many other options

Stem: Alloy 4 bolt ahead stem anodized black

Bars: Geoff Loop bar or riser bars 610mm (or Denham bar upgrade)

Seatpost: Aluminium, 300mm black

Saddle: Brooks Cambium C17 black All-Weather. or Brooks B17 leather

Grips: ESI Chunky or Ergon GC1 Rohloff specific (or GP5)

Pedals: Shimano PD-GR400 / PD-GR500 MTB flat pedals black

Colour: Any of of our stock colours, or custom colour for extra charge



Racks: Tubus Logo (+£140), Tubus Tara (+£105), Tubus Tara Big Apple (+£110), Surly front rack (+£140)

Guards: SKS Chromoplastic 65mm

For upgrade options and accessories click here

Weight - 14.2kg based on medium size frame with Rohloff hub and E512 rims, excluding pedals & racks

N.B. Specifications may change without prior notice.
